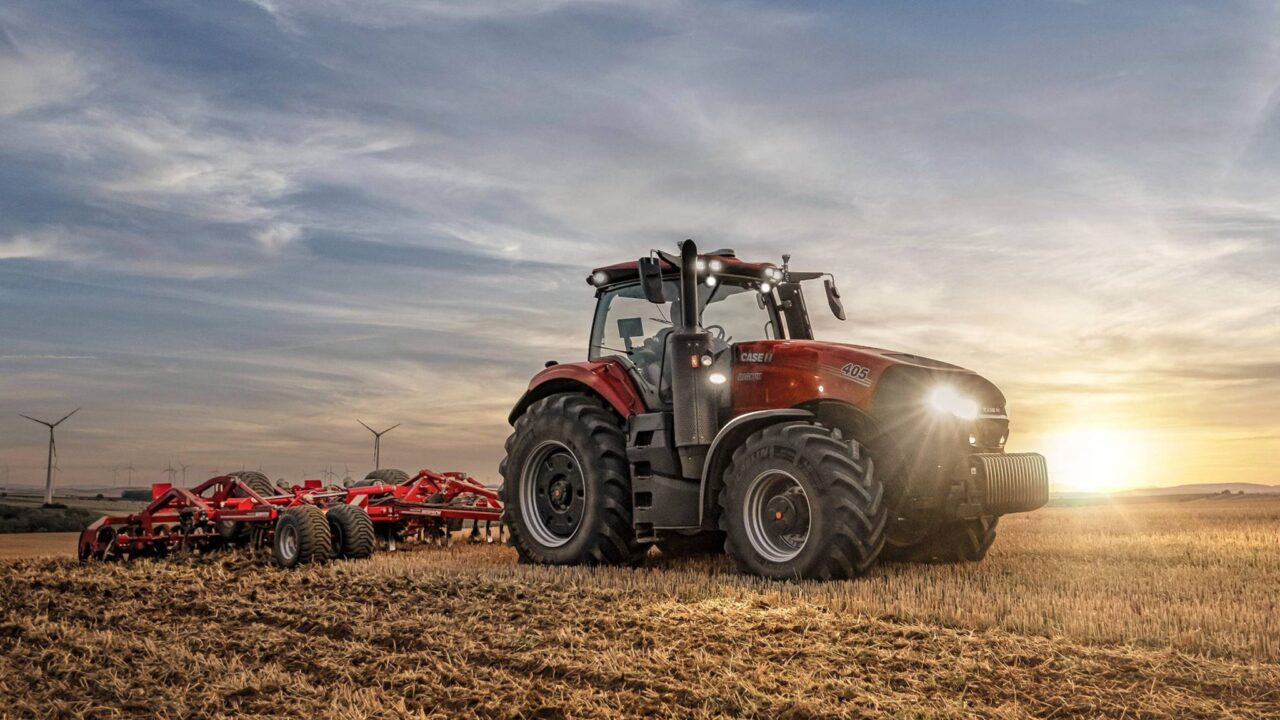

Case has reshuffled its top end line-up with three new Magnum models for the 2025 season that boast transmission, hydraulic, and digital tech updates.
The new tractors are all powered by a six cylinder, 8.7L, stage V engine from FPT and are available as the Magnum 355 (390hp), the 385 (417hp), and the 405 (435hp).
The first two models can be boosted to 410hp and 435hp, while the Magnum 405 has no boost facility and is rated at a straight 435hp.
The Magnum 385 and 405 models can also be specified in Rowtrac configuration, which features rear track units for enhanced traction and reduced soil compaction.
Updated transmissions
Case has persevered with the manual transmission, even at this power level, and offers a choice of a 21F/5R PowerDrive full powershift or its own continuously-variable CVXDrive transmission (CVT) .
While the cost premium of a CVT are not appreciated by many, the advantages of a CVT are, so to help blur the line between the two the company has added a further feature to its PowerDrive transmission.
This takes the form of a brake-to-clutch feature that disengages the transmission when the brake pedals are depressed, enhancing stopping safety and precise movement when manoeuvring or attaching implements.
When the brakes are released, the tractor accelerates to its previous speed, and the operator can set and choose from three ratio settings between brake force and tractor deceleration, features that bring CVT-like convenience and operating function to the full powershift, according to Case.
Furthermore, through the Case IH Pro 1200 display, users can adjust the acceleration rate, make 15% speed changes to the target speed, and alter upshift sensitivity and aggressiveness rate settings.
Upgraded Magnum hydraulics
New horizontally mounted electrohydraulic remote valve assemblies provide increased reliability, an improved hydraulic power curve, and maximum oil retention.
The power beyond fitting has been relocated for better access, and new 0.5in and 0.75in pressure relief lever-assisted couplers make connecting and disconnecting hydraulic pipes easier.
The optional front hitch now features mid-mount valves with a higher-performing valve slice, providing 20% more maximum pressure-side flow (120L/min) for enhanced lift performance.
Choice of tech
Like several other Case IH models, Magnum tractors are now available with three technology packages, allowing customers to select the best fit for their operation.
Magnum tractors are also available with AccuSync, which allows multiple machines to connect within a field, sharing data such as A-B lines and coverage maps.
The Pro 1200 display screen is subject to reduced glare in all lighting conditions, and can be remotely viewed by the owner and dealer for monitoring as well as operating and service support.
The first European showing of the new Magnum tractors will be at Demoagro, in Medina del Campo, Valladolid, Spain, from May 20-22, 2025.
