New 4-pot McCormick tractors switch engines – from Perkins to Deutz
A new generation of McCormick X5 Series tractors is now available from dealers. These tractors come with more transmission options for a “wider choice of gear configurations”.
Also noteworthy are new reduced-revs 40kph and PTO speeds, along with a power-boosted braking system.
“The X5 Series is at the core of our ‘livestock tractor’ line-up. It offers a lively and versatile power unit with a broad choice of specifications to suit different preferences,” noted Adrian Winnett, Argo Tractors’ managing director for the UK and Ireland.
“Together with a neat and well laid-out cab providing a comfortable working environment, with good all-round visibility, the tractors make an attractive package for field and loader work.”
New Deutz-powered models

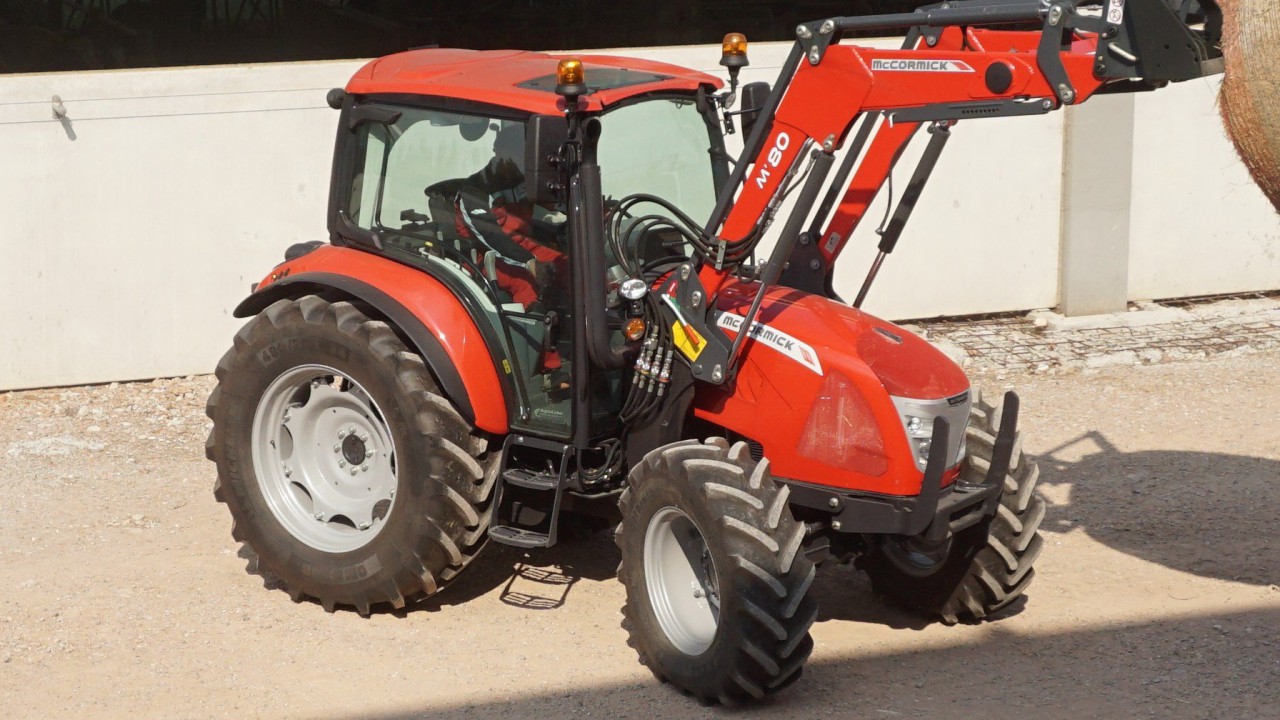

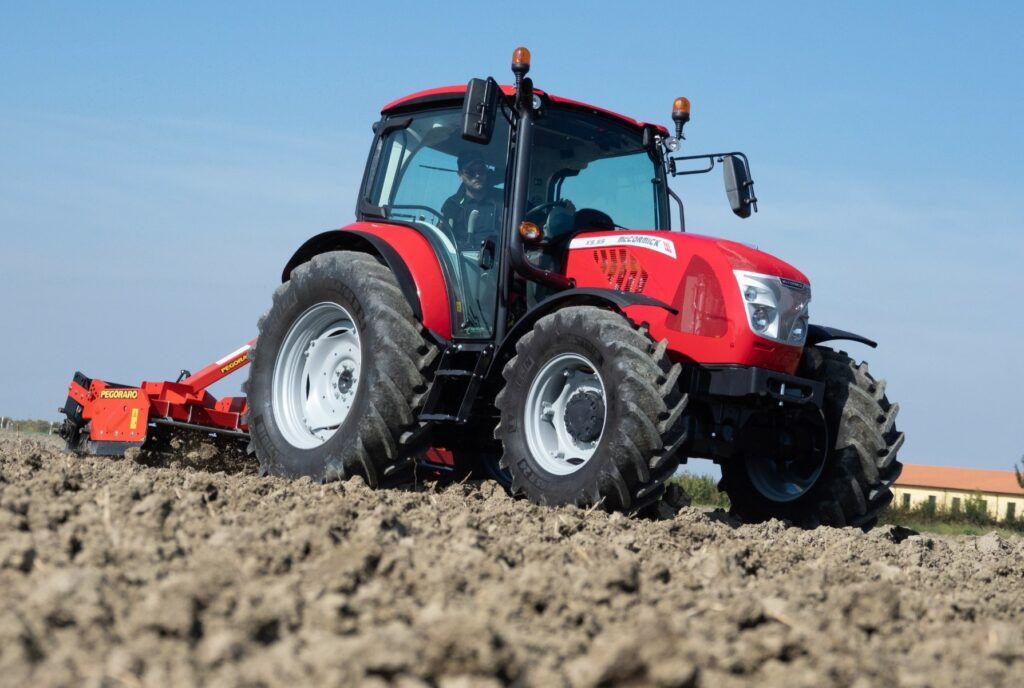

The new McCormick X5 Series replaces the Perkins-powered first-generation X5 design with three new models powered by 3.6L Deutz four-cylinder engines. Maximum outputs are 99hp (X5.35), 107hp (X5.45) and 113hp (X5.55).
The new engine is said to have “simpler emissions control hardware” in the form of a diesel oxidation catalyst (DOC) which, unlike a diesel particulates filter (DPF), requires “no fuel-burn cleansing, maintenance or operator intervention”.
It also has a new viscous-drive option for the cooling fan, which runs only when necessary (presumably to boost fuel economy).
As for transmissions, buyers can choose between a dry-clutch ‘synchro’ shuttle or wet-clutch power-shuttle; a gear-splitter or three-speed powershift; and from 12 to 36 forward speeds. A creeper gearbox option is available across the board.
In addition, the new ‘Eco Forty’ feature facilitates reduced engine revs at a 40kph cruising speed, to save fuel and give the operator a “quieter drive on lengthy transport runs”.
The new four-speed PTO option is another “fuel-saving feature”. It provides both 540rpm and 1,000rpm shaft speeds at ‘economy’ as well as ‘power’ settings.
Hydraulic resources comprise a 62L/min gear pump (complemented by a 32L/min pump dedicated to steering and ancillary clutches), supplying the three double-acting spool valves that are fitted as standard.
Larger tyres are being fitted for the UK and Ireland and a new power-boosted braking system apparently delivers “better performance for less effort from the operator”.
“True all-wheel braking” is provided by the internal front axle disc brakes (installed as standard).
